De Raat Batrea 1

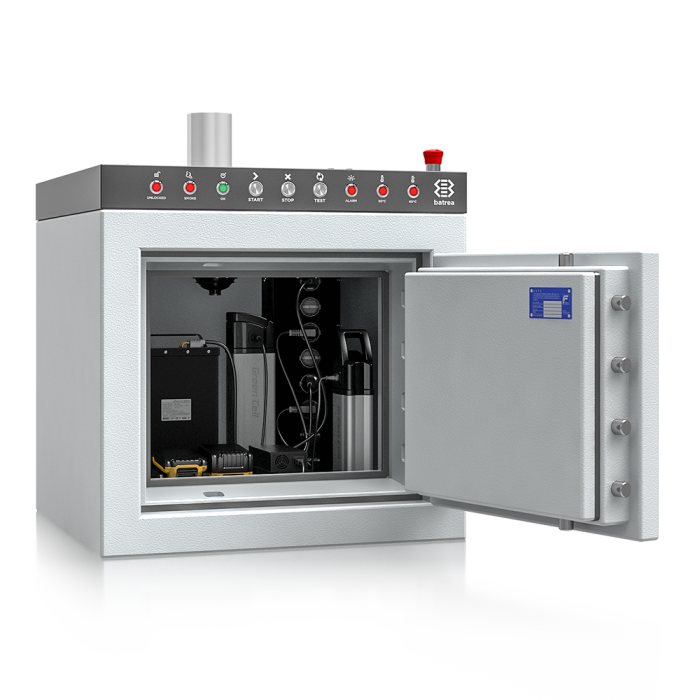

The De Raat Batrea 1/060 Fireproof safe for storing & charging of Lithium-Ion Batteries.

• Complies with the VDMA guidelines 24994: 2024-08, according to which cabinet can withstand extreme conditions, such as uncontrolled fires and battery explosions, while maintaining the highest safety standards.
• Tested & certified to VDMS standard sheet 24994:2024-08 as an I/060 Lithium-ion battery storage safe with a maximum load capacity of 200 kgs.
• The certificate is issued by an independant certification body and tested by ECB-S recognized cooperation partners.
• Multi-walled safe construction of body and door with special insulating compound.
• Equipped with a ventilation system which serves to extract and supply the air. The diameter of connector is DN100.
• Fitted with Class A Key-Lock with 2.no 120 mm keys.
• 4-Way locking bolt system.
• 8 Socket power points.
• Fire-resistant seal system- special smoke and fire seals.
• Construction of body and door compliant with 1143-1.
• Intuitive diagnostic control panel with piezo-electronic buttons.
• Automatic ventilation shut-off system in case of detection of noxious fumes.
• System for air extraction and supply, minimum flow rate 30m2.
• 3000 Wh at one storage level.
• Tested on the most dangerous NMC batteries NMC 9-0, 5-0, 5.
• Prepared to fix to floor and wall.
• Painted in a RAL 7035 colour.
• 1 Year Warranty.
