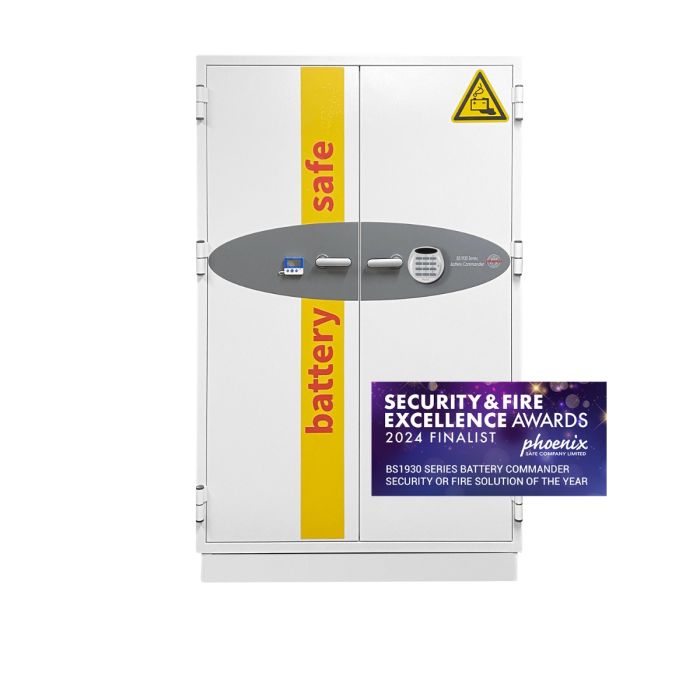

Phoenix Battery Commander BS1934E
External Dimensions (mm) | (H) 1770 x (W) 1125 x (D) 650 |
Internal Dimensions (mm) | (H) 1505 x (W) 945 x (D) 440 |
Weight (Kg) | 590 |
Volume (Litres) | 626 |
Over 35 Years Industry Experience
The Phoenix Battery Commander BS1934E has been design for the protection of life and buildings from the devastating effects of Lithium battery Fires. They offer a safety storage and charging solution for large volume of Lithium-Ion batteries. Lithium-Ion batteries present many risks including thermal runaway caused by a rise in temperature, a shock or faulty manufacture. This can result in the battery igniting and causing a fire that can be extremely difficult to extinguish.
- FIRE PROTECTION – Tested to EN14470-1 (part 1) for 90 minutes.
- DROP TEST – Fire and impact tested from 9.1 metres for resistance to the impact of falling through the burning floors of a building.
- VENTILATION – Fitted as standard with Air ventilation ducts, these ducts are heat protected by a thermal fuse that triggers at 75 Degrees C. This seals the unit in the event of an internal battery fire or external building fire. For added ventilation, an external extraction fan can be connected to the top exit vent duct, for forced extraction, this is highly recommended to prevent the build up of heat whilst charging.
- INTERNAL TEMPERATURE MONITOR – For safety the cabinet comes as standard with an external temperature display, this gives an accurate internal temperature reading and early warning of a potential issue with a battery over heating.
- AUTOMATIC DOORS – Each door is fitted with auto closing and auto locking function so the safe is always securely closed and sealed in the event of a fire.
- LOCKING – Fitted with an advanced high security electronic lock with clear LED display, dual control, hidden code & scrambled code that can be programmed as standard. The lock can further be upgraded to incorporate multiple user audit trail so that user’s usage can be monitored.
- MULTIPOINT LOCKING – Fitted with an advanced multipoint locking system that securely seal the doors. Even in the event of the most severe battery explosion, the doors will remain securely closed.
- CONSTRUCTION – Double wall construction with internal fill of our patented Styronite F insulation provide a cabinet of great strength and fire/heat resistance.
- POWER POINTS – Fitted as standard with 1 x surge protected 8 gang power block, option to add a further 3 power blocks to the pre-wired control boxes.
- SHELVING – Supplied with Heavy duty perforated height adjustable shelves capable of carrying 100kg at a time. Fitted with an internal base sump as standard.
- 2 Year Warranty.
The Phoenix Battery Commander BS1934E has been design for the protection of life and buildings from the devastating effects of Lithium battery Fires. They offer a safety storage and charging solution for large volume of Lithium-Ion batteries. Lithium-Ion batteries present many risks including thermal runaway caused by a rise in temperature, a shock or faulty manufacture. This can result in the battery igniting and causing a fire that can be extremely difficult to extinguish.
- FIRE PROTECTION – Tested to EN14470-1 (part 1) for 90 minutes.
- DROP TEST – Fire and impact tested from 9.1 metres for resistance to the impact of falling through the burning floors of a building.
- VENTILATION – Fitted as standard with Air ventilation ducts, these ducts are heat protected by a thermal fuse that triggers at 75 Degrees C. This seals the unit in the event of an internal battery fire or external building fire. For added ventilation, an external extraction fan can be connected to the top exit vent duct, for forced extraction, this is highly recommended to prevent the build up of heat whilst charging.
- INTERNAL TEMPERATURE MONITOR – For safety the cabinet comes as standard with an external temperature display, this gives an accurate internal temperature reading and early warning of a potential issue with a battery over heating.
- AUTOMATIC DOORS – Each door is fitted with auto closing and auto locking function so the safe is always securely closed and sealed in the event of a fire.
- LOCKING – Fitted with an advanced high security electronic lock with clear LED display, dual control, hidden code & scrambled code that can be programmed as standard. The lock can further be upgraded to incorporate multiple user audit trail so that user’s usage can be monitored.
- MULTIPOINT LOCKING – Fitted with an advanced multipoint locking system that securely seal the doors. Even in the event of the most severe battery explosion, the doors will remain securely closed.
- CONSTRUCTION – Double wall construction with internal fill of our patented Styronite F insulation provide a cabinet of great strength and fire/heat resistance.
- POWER POINTS – Fitted as standard with 1 x surge protected 8 gang power block, option to add a further 3 power blocks to the pre-wired control boxes.
- SHELVING – Supplied with Heavy duty perforated height adjustable shelves capable of carrying 100kg at a time. Fitted with an internal base sump as standard.
- 2 Year Warranty.
Manufacturer | Phoenix Safes |
---|---|
Fire Rating | 90 minutes |
Lock Type | Electronic Lock |
Warranty | 2 Years |
Shelves | 3 |
Locking Bolts | 7 |
Hinges | External Hinges |
Pin Length | 6 digits |
Battery Location | External |
Batteries | 4.no Alkaline AAA batteries (Included) |
Anti-Drill Protection | Yes |
Time Delay | No |
Size | BS1934E |
